홈 /제품 소개/산업적 캐스터들/Industrial polypropylene Caster Wheel

Industrial polypropylene Caster Wheel

500
MOQ
5.23
가격
Industrial polypropylene Caster Wheel
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Name: Industrial polypropylene Caster Wheel
Wheel Material: polypropylene
Wheel Diameter: 75 mm / 100 mm / 125 mm / 160
Tread Width: 25mm / 30mm / 37mm / 40mm / 50mm
Load Height: 95mm / 125mm / 153mm / 195mm / 240mm
Plate Size: 81x65mm / 100x80mm / 100x80mm / 130x103mm / 130x103mm
Hole Spacing: 60x45mm / 80x60mm / 80x60mm / 105x75mm / 105x75mm
Hole Size: 8.5mm / 8.5mm / 8.5mm / 12.5mm / 12.5mm
Thread Size: M12 × 30 mm
Load Capacity: 50kg / 70kg / 80kg / 120kg / 130kg per wheel
Installation: Top-plate mount
기본 정보
Place of Origin: China
브랜드 이름: Dajin
인증: Rosh/CE/IOS
Model Number: HTC-001
결제 및 배송 조건
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
제품 설명
Industrial PU Caster Wheel

Features

  1. Robust bracket made from cold-rolled steel, finished with a zinc coating to prevent corrosion and extend lifespan
  2. High-quality polypropylene (PP) wheels, engineered for durability, lightweight performance, and resistance to chemicals
  3. Equipped with precision dual ball bearings to enable effortless, agile steering
  4. Hard, non-marking wheels designed to prevent floor damage and reduce maintenance needs

Function

  • Delivers reliable and stable mobility solutions for a wide range of industrial and commercial uses
  • Minimizes operational noise and vibration, creating a quieter environment
  • Maintains smooth, consistent performance even with frequent movement and significant weight


Application

  1. Well-suited for refrigerated display cases and cold storage cabinets
  2. Commonly used on warehouse trolleys, flatbed carts, and industrial shelving units
  3. An excellent choice for any equipment requiring easy and safe mobility in demanding environments


Technical Parameters


Standard Size Material Wheel Diameter Wheel Width Installation Height Plate Size Bolt Hole Spacing Bolt Hole Diameter Load Capacity
3 inch PP / PU / Elastic rubber 75mm 25mm 95mm 81×65mm 60×45mm 8.5mm 50kg
4 inch 100mm 30mm 125mm 100×80mm 80×60mm 8.5mm 70kg
5 inch 125mm 37mm 153mm 100×80mm 80×60mm 8.5mm 80kg
6 inch 160mm 40mm 195mm 130×103mm 105×75mm 12.5mm 120kg
8 inch 200mm 50mm 240mm 130×103mm 105×75mm 12.5mm 130kg


Product

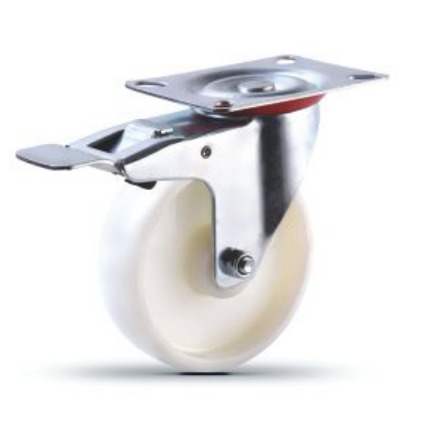

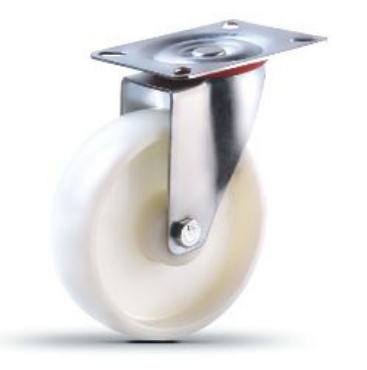

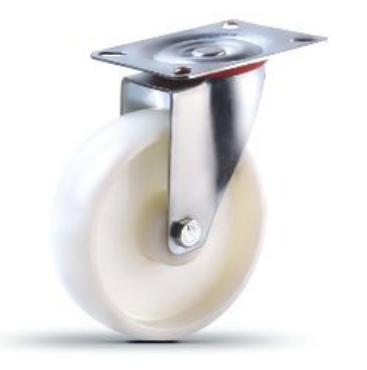

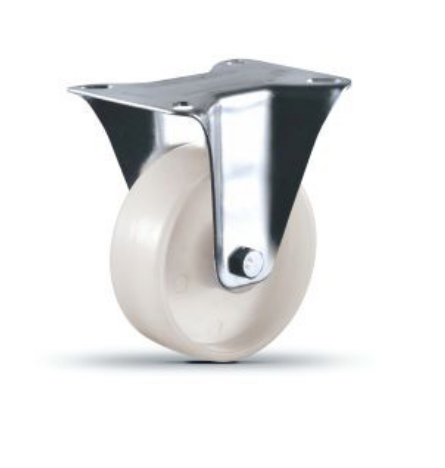

Industrial polypropylene Caster Wheel 0


Factory Shows

Industrial polypropylene Caster Wheel 1

Industrial polypropylene Caster Wheel 2
